Industrial Air Compressor for Textile Industry Manufacturers China

Description

Technical Data

More Details

Description

Quick Details

Applicable Industries:: Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops

Showroom Location:: Philippines, Mexico, Russia

Condition:: New

Type:: Screw

Configuration:: Stationary

Power Source:: AC POWER

Lubrication Style:: Lubricated

Mute:: Yes

Place of Origin:: Shanghai, China

Brand Name:: Sollant

Model Number:: SLTE-75G

Voltage:: Customers' Requirements

Dimension(L*W*H):: 2160*1830*2000

Weight:: 2830

Warranty:: 1 Year

Working Pressure:: 3 bar

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Marketing Type:: New Product 2021

Warranty of core components:: 2 years

Core Components:: PLC, Other, Pump, Bearing

Gas Type:: Air

After Warranty Service:: Video technical support

Local Service Location:: Philippines, Mexico, Russia

After-sales Service Provided:: Online support

Certification:: CE,ISO

Supply Ability

Supply Ability: 3000 Set/Sets per Month

Packaging & Delivery

Packaging Details: Wooden Package

Port: Qingdao/Shanghai

Picture Example:

Lead Time:

Quantity(Sets)	1 - 1	>1
Est. Time(days)	15	To be negotiated

Product Description

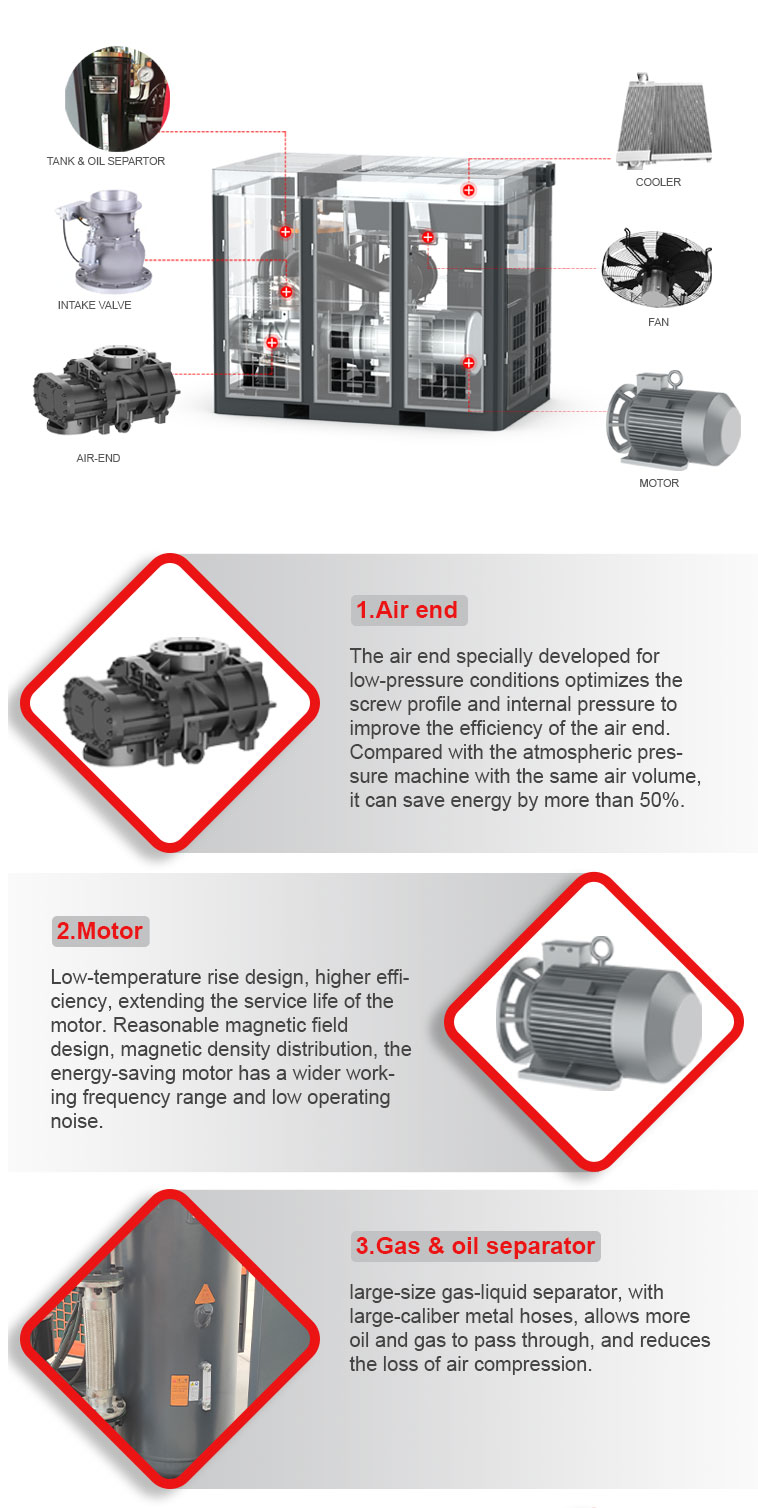

Advantages of Low Pressure Air Compressor

※ The host specially developed for low-pressure conditions optimizes the screw profile and internal pressure to improve the efficiency of the host. Adopt the design idea of "large rotor, large bearing, low speed" to reduce noise and vibration, and increase the life and stability of the host. ※ The tooth surface is processed by a rotor grinder to create a high-precision rotor, which is the first guarantee for the high efficiency and stability of the host. Compared with the atmospheric pressure machine with the same air volume, it can save energy by more than 50%, and the industry application is more energy-efficient. Protect the environment and reduce usage costs.

※ According to the user’s working pressure, the internal compression ratio is automatically adjusted, and the best specific power can be maintained within the exhaust pressure range of 0.2~0.5Mpa. The forced lubrication of the oil pump is used to ensure sufficient fuel injection and the best air-air mixing ratio under extremely low exhaust pressure.

Technical Data

Model		SLTE-75G
Working pressure	bar	2.1-3.0
Working pressure	psig	30-44
Capacity	m3/min	7.16-24.2
Capacity	cfm	253-855
Power	kW	75
Power	hp	100
Noise	dB(A)	68±3
Air outlet pipe diameter		DN125
Net weight	kg	2830
Dimensions(mm)	Length	2160
	Width	1830
	Height	2000
Rotating speed		2000

More Details

Shanghai Sollant Energy Saving Technology Co., Ltd. is located in Jiading disrtrict Shanghai City which is China's logistics
capital with great transportation convenience. Sollant is a comprehensive screw air compressor manufacturer that engaged in R & D,design, production and sales. It has a plant of 10,000 square meters, including a large production workshop, a comprehensivefirst-class exhibition hall and a testing laboratory.

Sollant has excellent mechanical engineering designers, an experienced staff team and a professional management team. The production concept focuses on energy-saving and is committed to perfecting and improving the technological process in order to get the core technology of super frequency energy-saving, achieving the characteristics of mute, durability, power saving and safety.

The company has 9 series of products with multiple models. Including Fixed speed air compressor, PM VSD air compressor, PM VSD two-stage air compressor, 4-in-1 air compressor, Diesel portable screw air compressor, Electric portable screw air compressor, Air dryer, Adsorption machine and the matching spare parts. Sollant adheres to the business philosophy of cooperation and mutual benefit to provide a one-stop service for every customer!

Q1: Are you a factory or trade company?
A1: We are an integration of industry and trade. The factory and international trade department are in the same place.

Q2: What the exact address of your company?
A2: C109, No.215, Songri Center, Beihongqiao, Jiading District, Shanghai, China

Q3: Warranty terms of your machine?
A3:24 months for the whole machine, 36 months for air end, technical support for life.

Q4: How long is your delivery?
A4: 25-30 days after receiving your 30% down payment.

Q5: Terms of payment?
A5: T/T and L/C at sight.

Q6: What is the MOQ?
A6: 1 PC.

Q7: Can you accept OEM orders?
A7: Yes, with a professional design team, OEM orders are highly welcome.

Q8: Can you accept color customization?
A8: Yes we can.

Q9: Will you provide some spare parts for the air compressor?
A9: Yes, of course.

Q10: What's your factory's production capacity?
A10: About 1000 units per month.Thank you.
